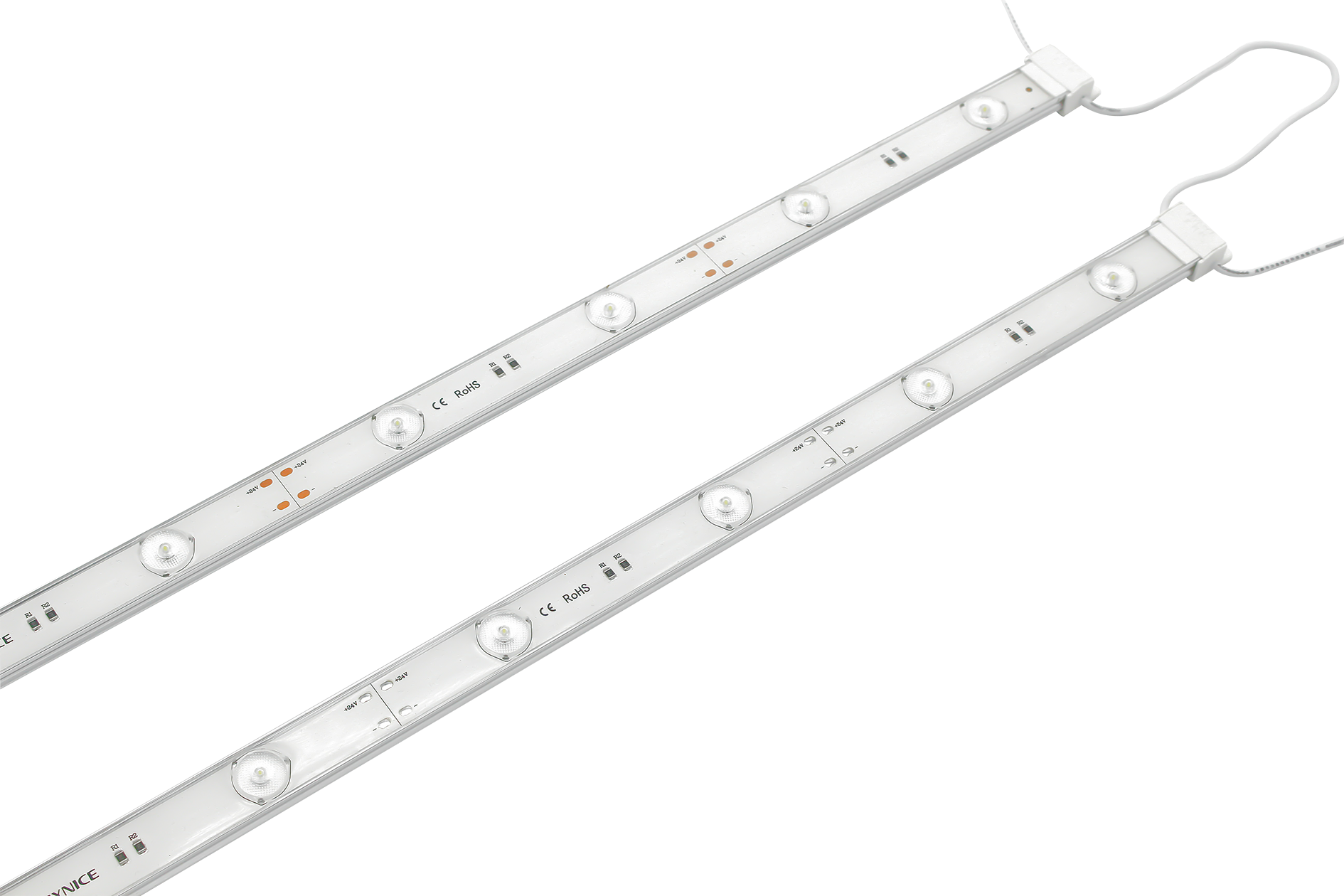

L312GX24B
| Product advantages
◆ High color consistency (MacAdam 3);
◆ Use Al Heat-sink to ensure heat dissipation;
◆ Silicone potting, IP Level: IP67;
◆ 168°Beam angle, high efficiency, high uniformity lens;
◆ Shutter-type installation, easy operation;
| Technical data
◆ Input voltage: DC 24V
◆ Power: 14.4W/pcs
◆ Lumen: 1200 lm / pcs
◆ lifetime: > 30000 hours
| Product data
|
Model No. |
Voltage(V) |
Power(W) |
Color(K) |
Lumens(lm/m) |
LEDs/M |
LED Type |
FPC Width |
|
L312GW24B-0.5 |
24 |
7.2 |
2700-12000 |
792 |
6 |
2835 |
24mm |
|
L312GH24B-0.5 |
24 |
7.2 |
2700-7000 |
792 |
6 |
2835 |
24mm |
|
L312GW24B-1 |
24 |
14.4 |
2700-12000 |
1584 |
12 |
2835 |
24mm |
|
L312GH24B-1 |
24 |
14.4 |
2700-7000 |
1584 |
12 |
2835 |
24mm |

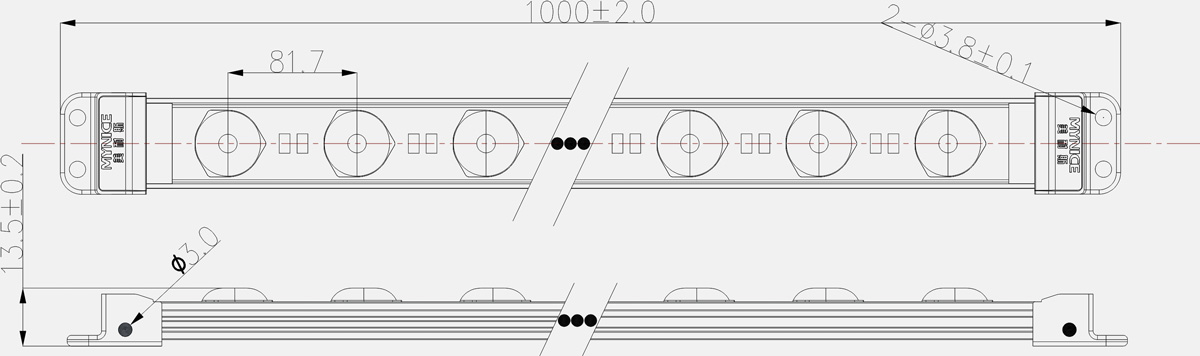

| Dimensional drawing

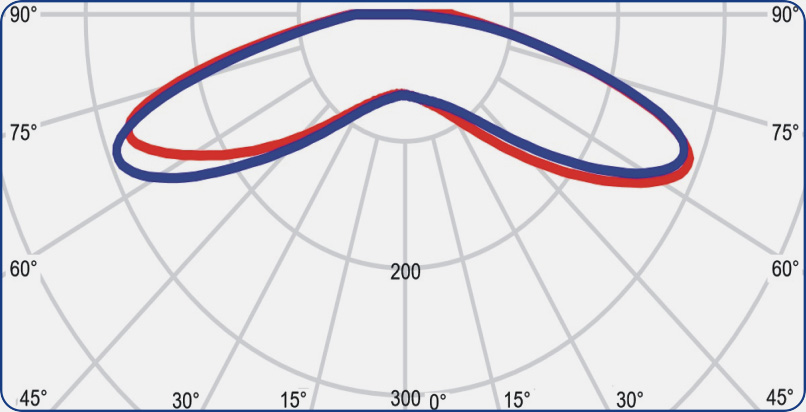

| Optical data distribution
